JWM Mechanical Diaphragm Metering Pump

Configuration

• 5. The diaphragm is manufactured using a multi-layer composite structure: the first layer is an ultra‑tough, acid‑resistant Teflon film; the second layer is EPDM elastomeric rubber; the third layer is a 3.0 mm SUS304 supporting core; the fourth layer is reinforced with nylon fibers; and the fifth layer is fully encapsulated with EPDM elastomeric rubber, effectively extending the diaphragm’s service life.

Features

• 1. Safe operation, mechanically driven diaphragm.
• 2. Excellent sealing, no leakage, and simple, safe assembly and maintenance.
• 3. It can handle high-viscosity media, corrosive liquids, and hazardous chemicals.
• 4. Flow rate can be adjusted by varying the stroke length or motor frequency.

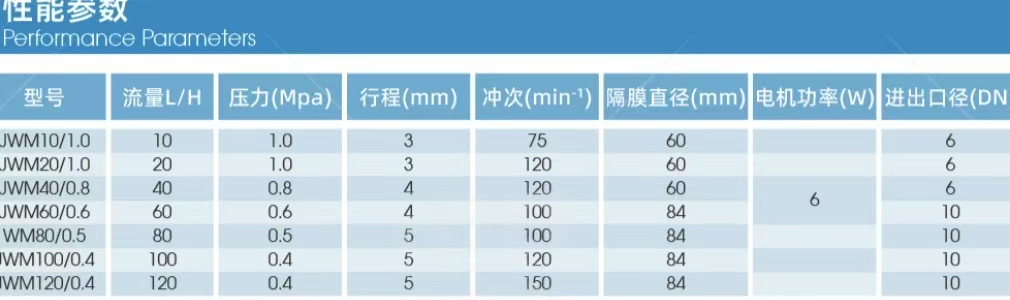

Specifications
