Metering pump
XH electromagnetic diaphragm metering pump
It employs an electromagnetically driven diaphragm structure and is widely used for precise liquid dosing in water treatment, environmental protection, chemical processing, and laboratory applications.
Inquire About This ProductConfiguration
- 1. Repeatability of measurement: 2% within the operating range
- 2. Ambient temperature: -10 to 45°C
- 3. Medium particle size: less than 1 mm
- 4. Medium viscosity: less than 800 mPa·s
- 5. Power supply: 220 V, 50 Hz, ±10%
- 6. Power consumption: 16 W
- 7. Insulation class: F
- 8. Protection rating: IP65
- 9. Timing range: 0.5 to 100 hours
- 10. Manual control: Manually adjust stroke length and operating frequency; set the working time; digital display shows the operating frequency and the set timing (0.5–100 hours); when set to 0.00, the device operates continuously without a preset time limit.

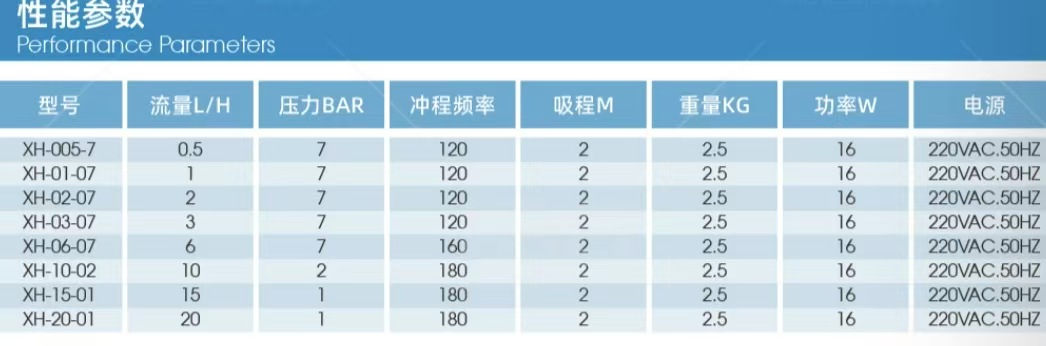

Specifications
