J1 Plunger-type metering pump

Features

• 1. The motor is mounted vertically, ensuring safety and leak‑free operation.
• 2. It can be configured with various types of insulated pump heads, including steam‑heated, hot‑water‑heated, and electrically heated options.
• 3. The inlet and outlet are equipped with high‑precision check valve assemblies, effectively guaranteeing metering accuracy and flow stability.
• 4. Suitable for high‑pressure applications and ideal for conveying media free of solid particles; however, it is not recommended for handling corrosive fluids or flammable and explosive hazardous chemicals.
• 5. Offers high metering accuracy, with steady‑state precision up to ±1%.
• 6. Provides multiple adjustment methods, including manual, variable‑frequency, and automatic remote control.
• a) Standard configuration: 304 stainless steel pump head, standard 380 V, 50 Hz motor.
• b) Optional configurations: 316L stainless steel pump head, Hastelloy pump head, titanium pump head, variable‑frequency motor, explosion‑proof motor, 440 V motor, 220 V motor.

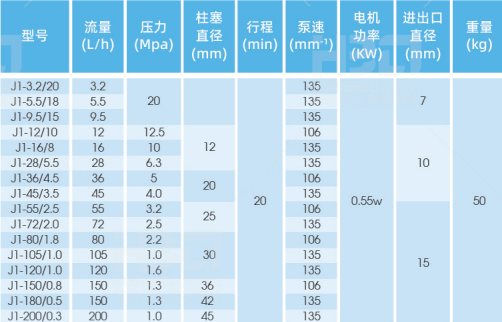

Specifications
